Oil lubrication improvements

I have just gone public, on my latest oil lubrication refinements to the Panhard flat twin…

I have decided to replace the oil pump relief valve that dumps oil into the sump, and replace this with a new oil relief valve combined into the oil light piston.

flexible

This has the added benefit of boosting the oil pressure in the camshaft gallery and enhancing the performance of the plain bearing surfaces. If you have a later engine and modify the oil drillings, and also block off the side drilling that feeds the timing gears, that’s the crankshaft & camshaft double chevron gears, then you are in a win win situation.

I can adjust the relief valve pressure fro the default 4 bar or higher, but you can only use the higher values if you modify the oil pump outlet, as shown… essentially you are radiussing the pump outlet and enlarging the feed into the crankcase to reduce the back pressure and cavitation.

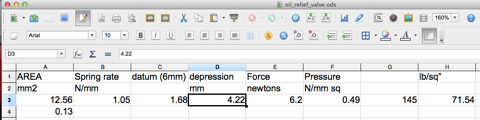

I created a spreadsheet to do the calculations...

flexible

The “depression” value is the recess to the set screw.

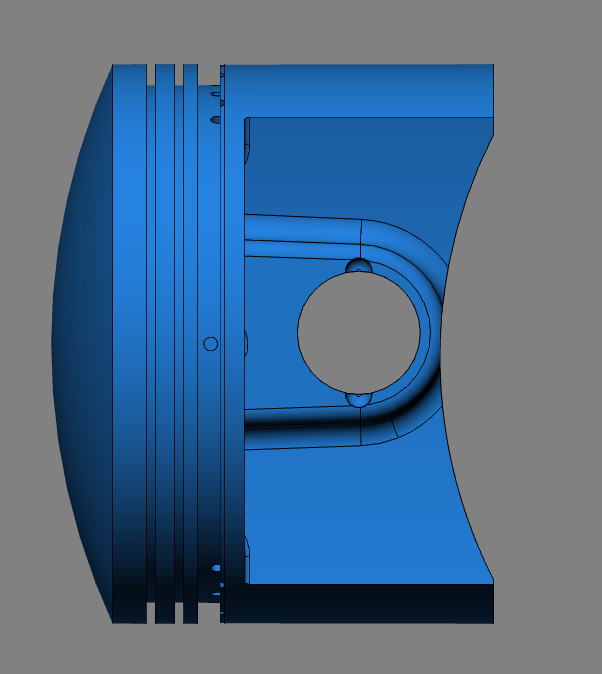

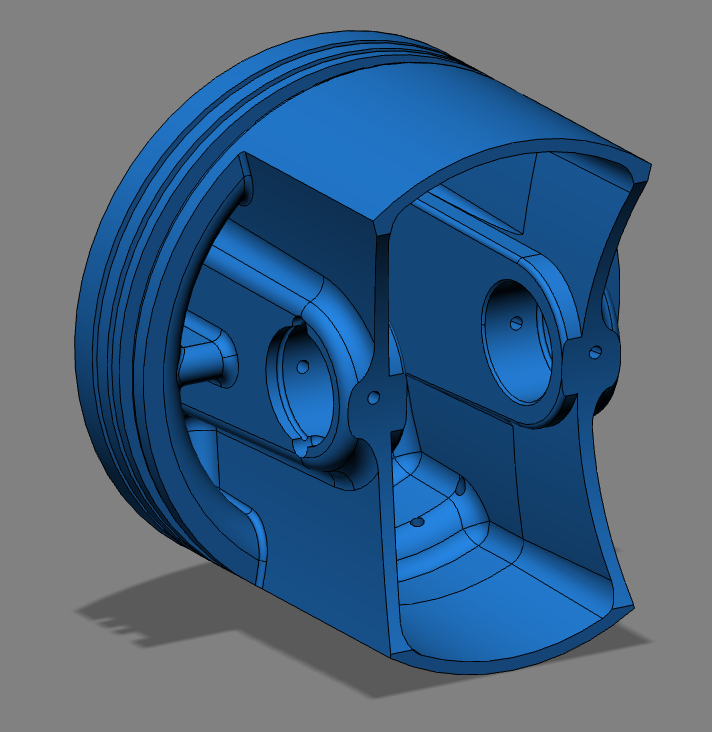

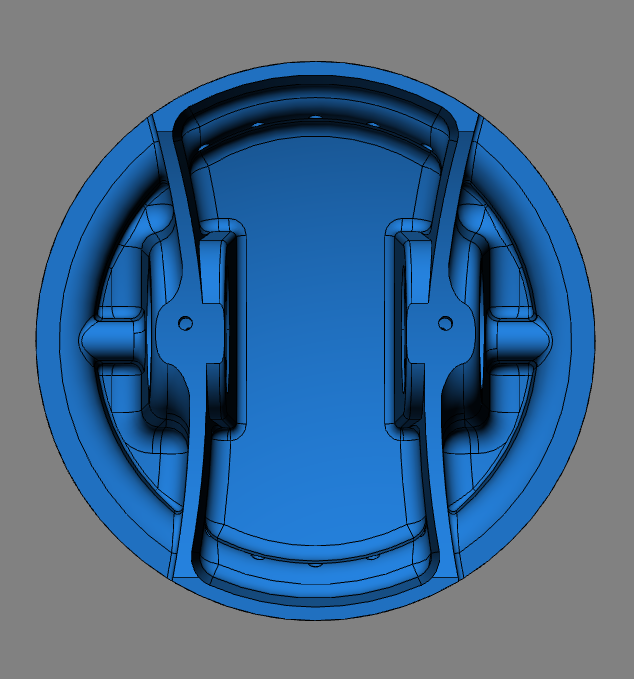

Big bore piston, second thoughts, an update

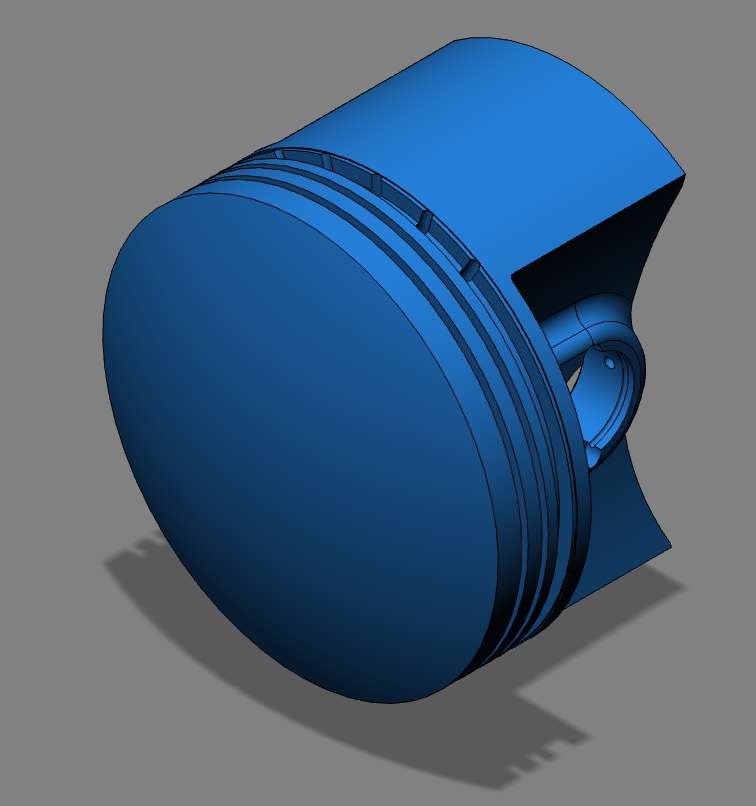

I had a little time to play some more, so here is the latest and more definitive piston, with oil control ring seep holes, cross drillings, and wire clip fitting details added. Piston skirt and crown thickness is still quite thick in places, but could be pulled down some more I think.

CAD model has been totally redrawn and updated from yesterday’s attempt, and this is now a very close approximation of the direction I will be taking, with a calculated bare weight of 520 Gr. This is a reduction of 60 grams on the first CAD version, and well within target to beat the all up weight of the original 85mm Panhard piston, which was 636 Gr in standard trim (Tigre engines sometimes had lighter pistons).

flexible

flexible

flexible

flexible

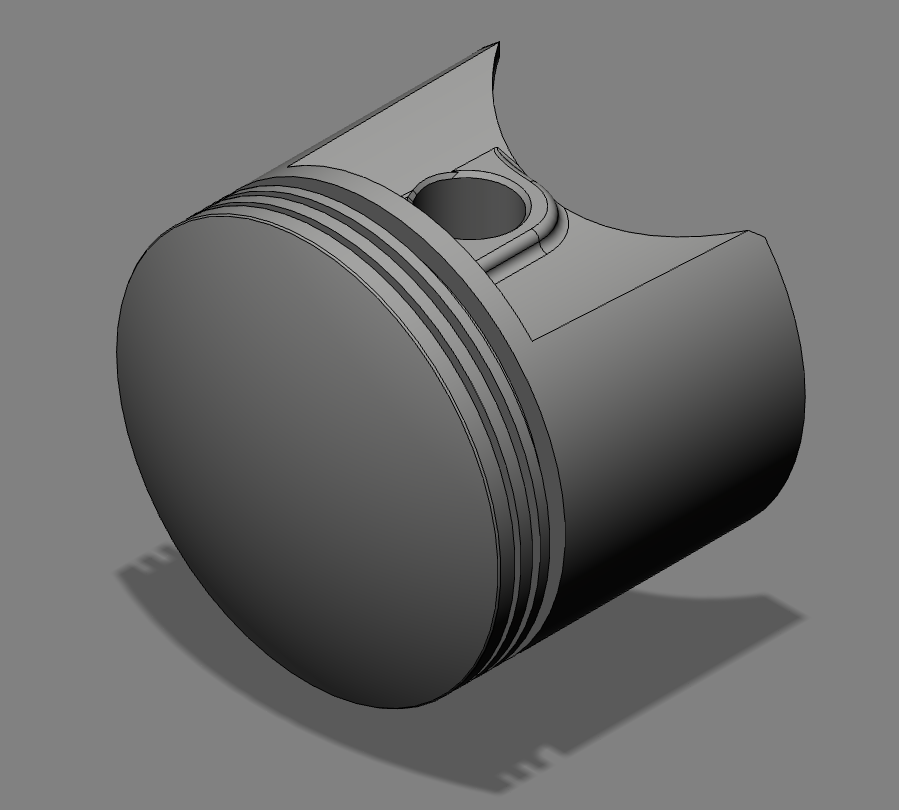

Big bore piston, first thoughts in CAD

I am tinkering with making a CAD model of the new 100mm piston, and at the same time making a forging compliant interior for the plug that will have to be specially commissioned. The CNC tooling is struggling to reach the inside of the solid billet piston, because Panhard pistons are so deep. After looking at the cost and weight constraints imposed by this approach, it is almost as economic to create a forging tool and a minimum run of pistons.

Realistically these pistons will be double the price of the initial batch I had made for Brian’s engine, but the important difference is, unlike other big bore solutions, no cylinder head separation or liner sinking operations will be required, so no pushrod, pushrod tubes or cowling mods will have to be made either. So although the new piston costs more, the amount of other work is considerably less, so it will bring other savings. The liners will be brand new and bespoke, so all that is required is a remachined original cylinder and crankcase, which you have to do anyway.

Please note, unlike Brians piston, the new piston will also feature an offset pin to reduce the crank pin loads, and the skirt designed to accommodate this too. Offset pin forgings are not available at this depth, so that’s another reason for creating a new forging tool.

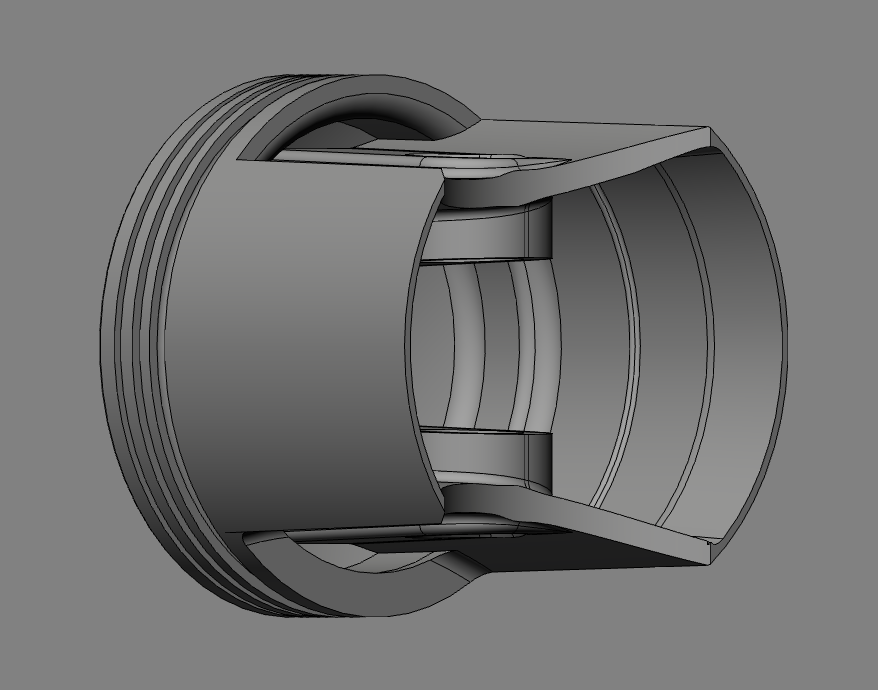

Back to the piston sketches, first thoughts, a few errors in the drawing, but enough for a ball park doodle. This still represents unfinished business yet, but the 580 Gr calculated piston weight is still less than the 94mm BMW R100 piston already, and there is more to come off, when I re-profile some elements later. Over the next few weeks, I am going to produce a few variants in CAD, then see which has the most production viability.

flexible

flexible

If you are interested in these pistons, I suggest you contact me, otherwise you will miss out.

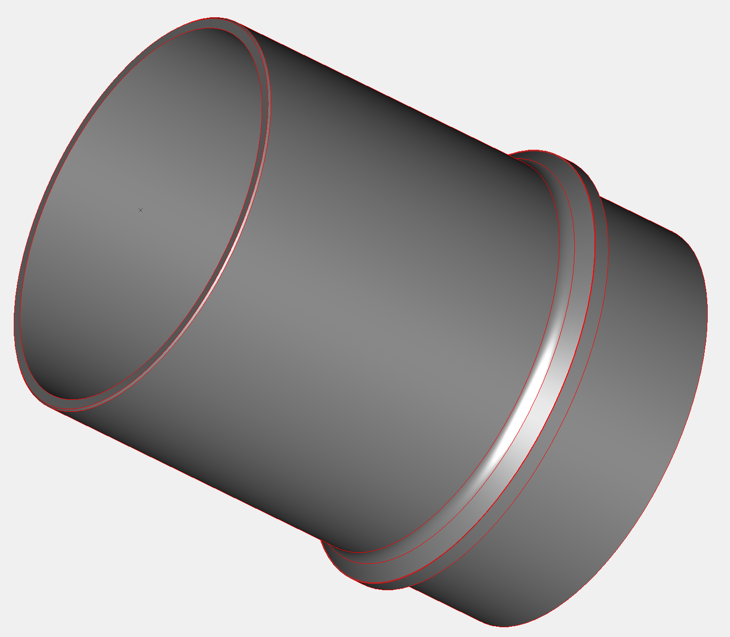

Big bore liner, first 3D CAD model

I have drawn this up for a friend in France, but have got to translate it to 2D for the liner company, looks vaguely familiar doesn’t it. :)

flexible

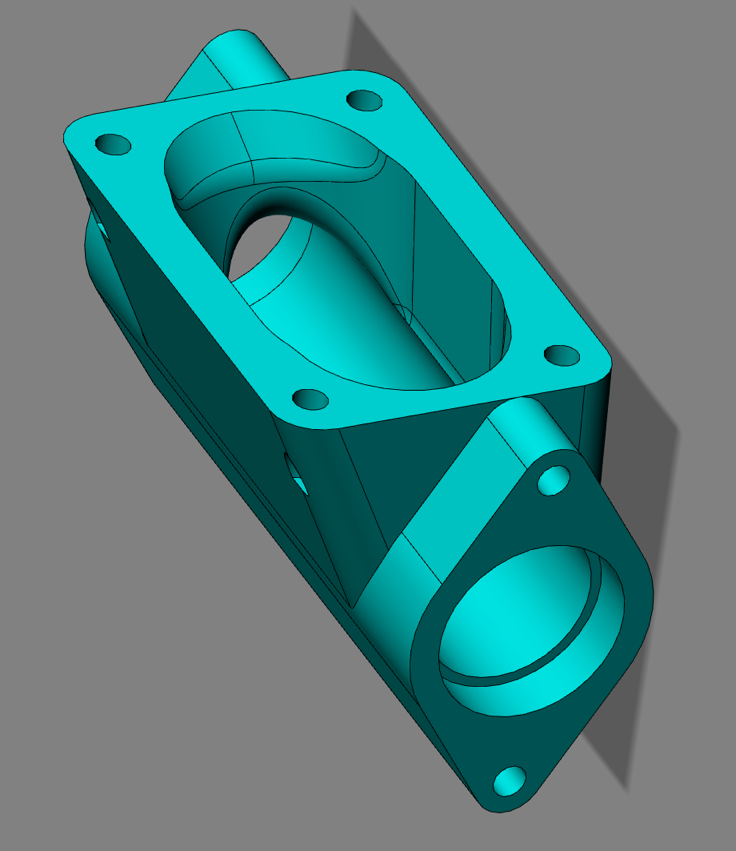

but this is better skunkworks. I have a 44mm DCNF carburettor lying around, so I thought it might make a useful addition to the standard 38mm Zenith NDIX, but it won’t fit on a standard inlet manifold. Time for a CAD session, and rustle up another 3D model.

flexible

As you can see the big bore project is gaining momentum.

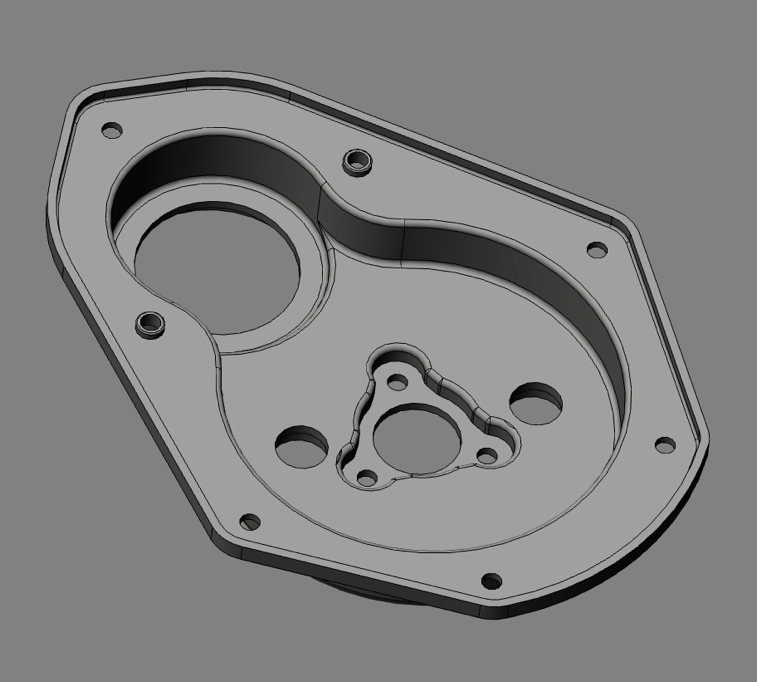

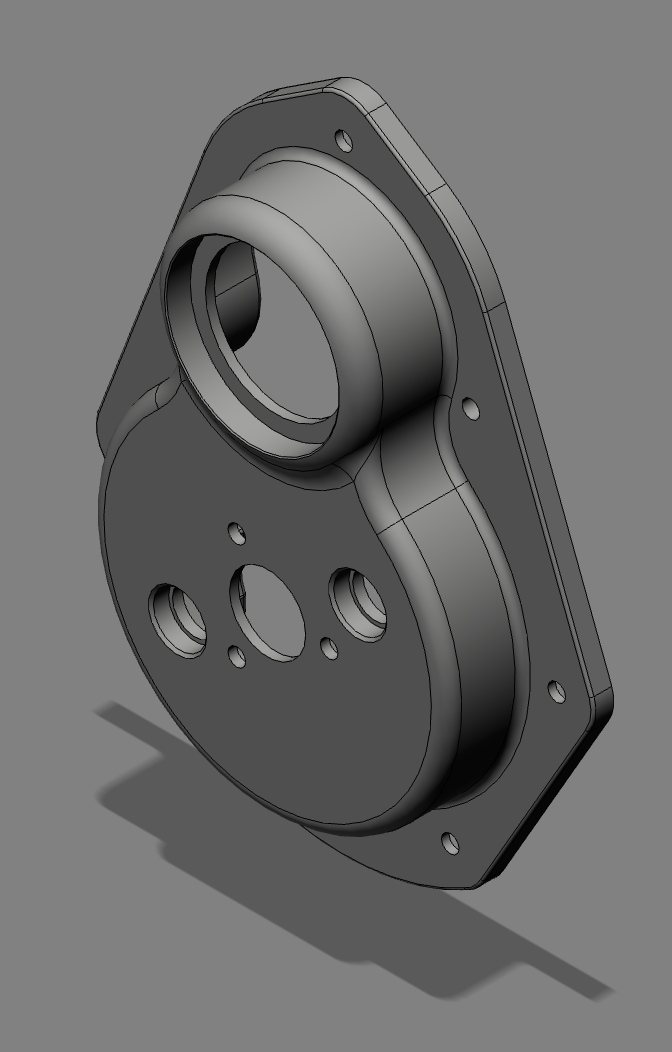

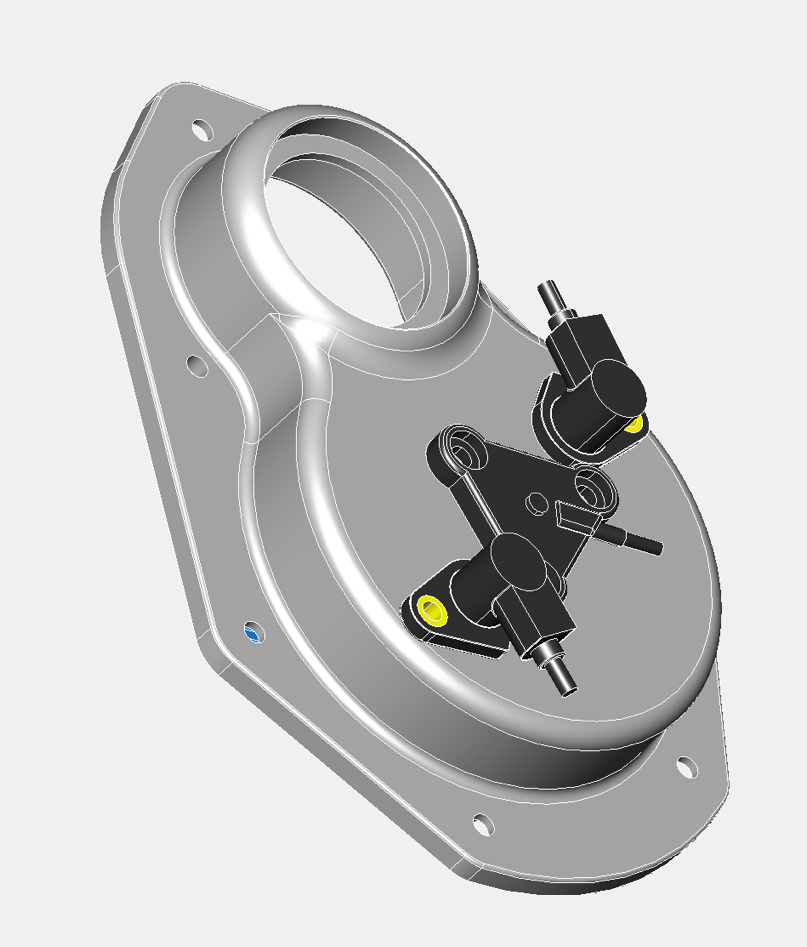

The timing cover is finalised for the first test batch

Since the last update the 2012 engine developments have been updated yet again, and this time to use another sensor altogether. This crankshaft sensor gives fantastic trigger performance at low speeds from 7 t/min upwards. It is extremely tolerant of air gap, so it’s a no brainer to not include it in the ignition developments for the big bore engine.

Latest version for twin spark set up using the Imfsoft IgnitionTCI 6.1 pictured below.

flexible

flexible

This is the proposed external sensor appearance, without the front pulley seal being fitted.

flexible

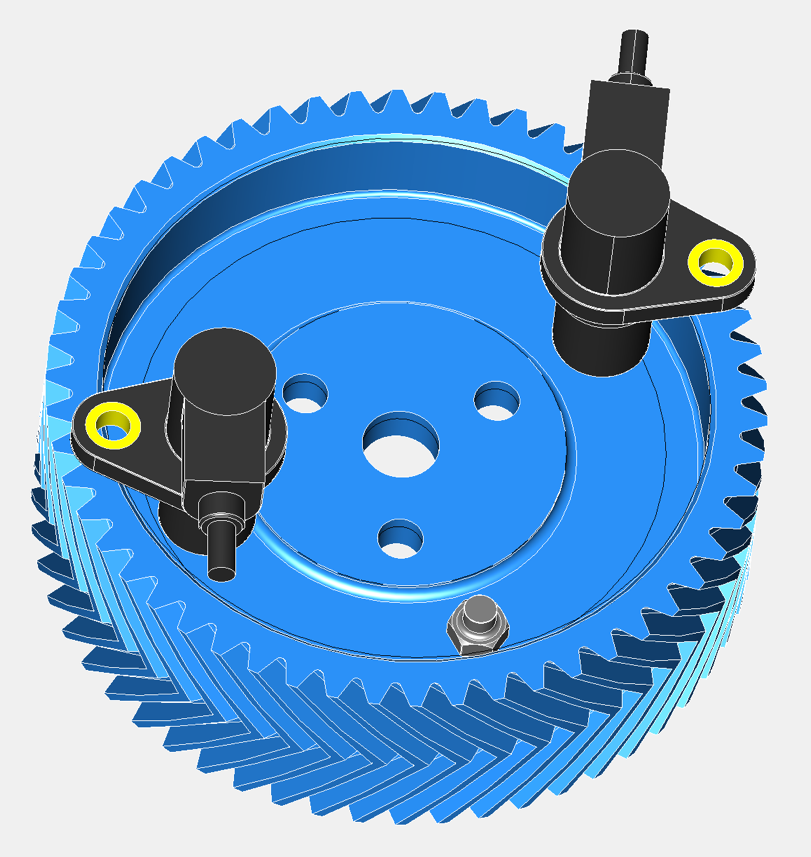

The ferrous trigger is simple enough too, as it’ll be a self coloured M6 stud (at the moment) , turned from hex bar, and threaded into the aluminium timing gear with a dab of Loctite.

flexible

Bench testing has been carried out using a wasted spark system, but I am still awaiting the Bosch Kompakt connectors for the twin single fire coils.
/
