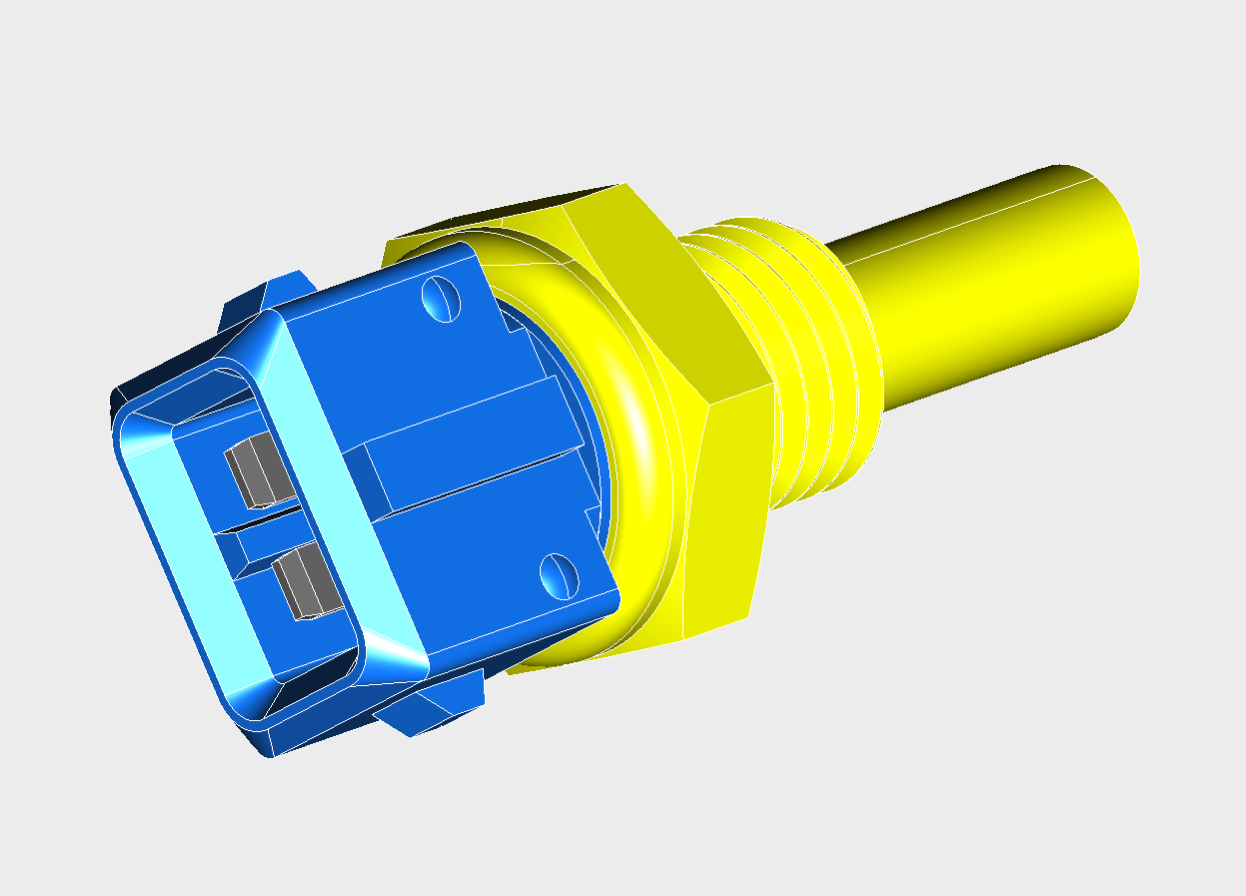

I have been using Shark FX for a number of years now, and found it very suited to my needs. In this section of my website, I am going to stick a few 3D models of everyday objects I create, as well as 3D scans when I acquire a scanner. The first image is a temperature sensor from a Land Rover Discovery I modelled to interface into a temperature sensor adaptor I was making for the Panhard engine.

Alt image
flexible

I'll add a link to a STEP or .stp file later.

Alt image
flexible
Alt image
flexible
Alt image
flexible
Alt image
flexible

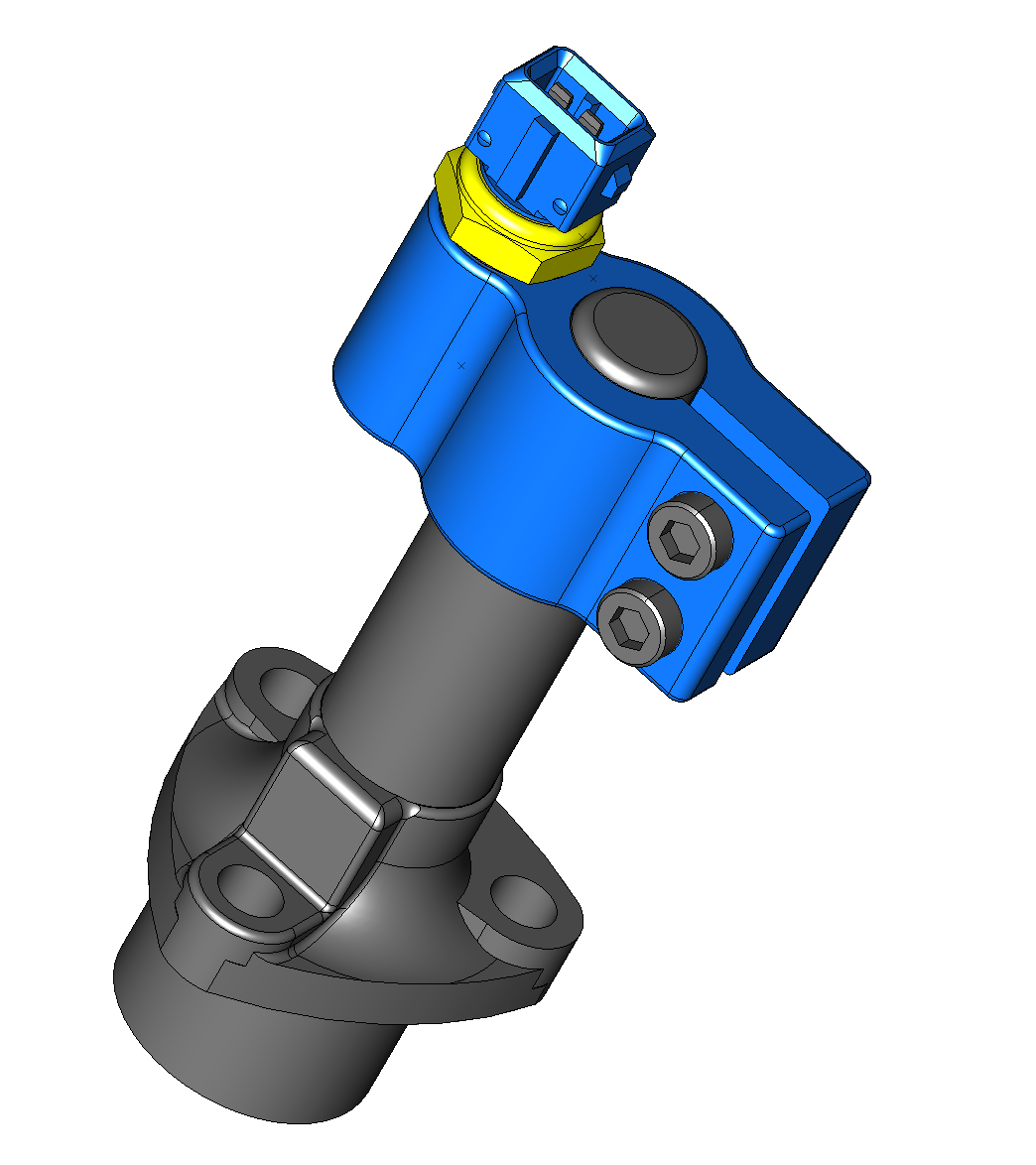

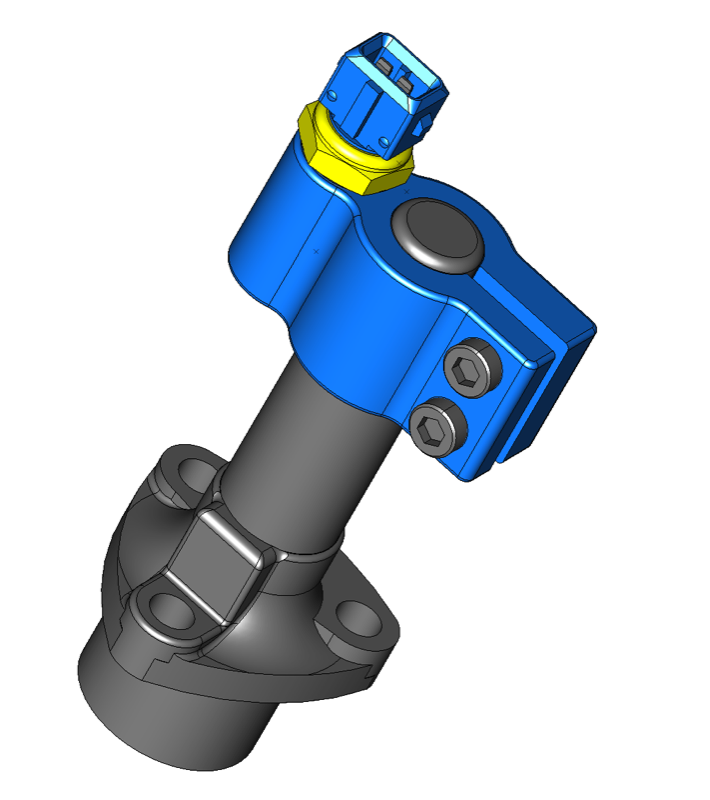

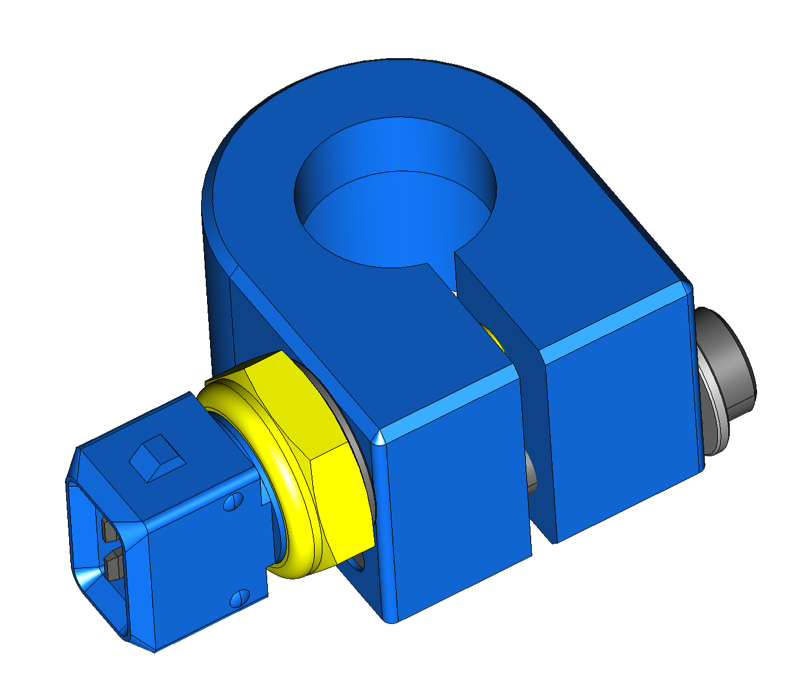

This is the compromise combo version, potentially easier to machine, with a height reduction. The sensor has more surface area inside, so should warm up faster, and there is better clamping forces, so less likely to vibrate off, and it won't mark the original torsion bar valve cover. All the stepped drillings are from the same side, so that'll mean less setting time.

Alt image
flexible

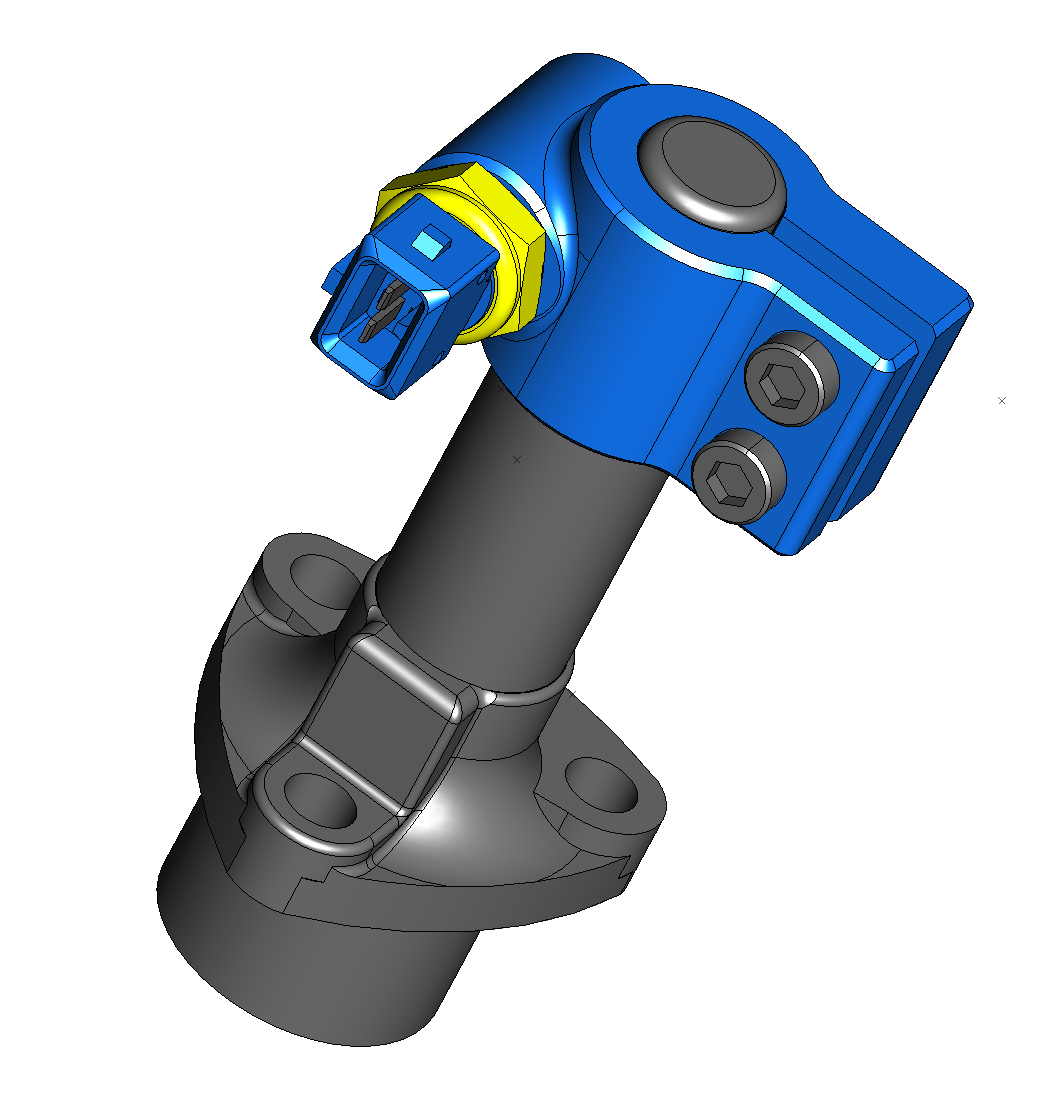

Well, I didn't like the one above, because it looked too heavy, and it needed a tweak. It 's was getting late, so I hurriedly edited the model, and got this, but then tweaked it again, because there were inconsistencies in the model.

Alt image
flexible

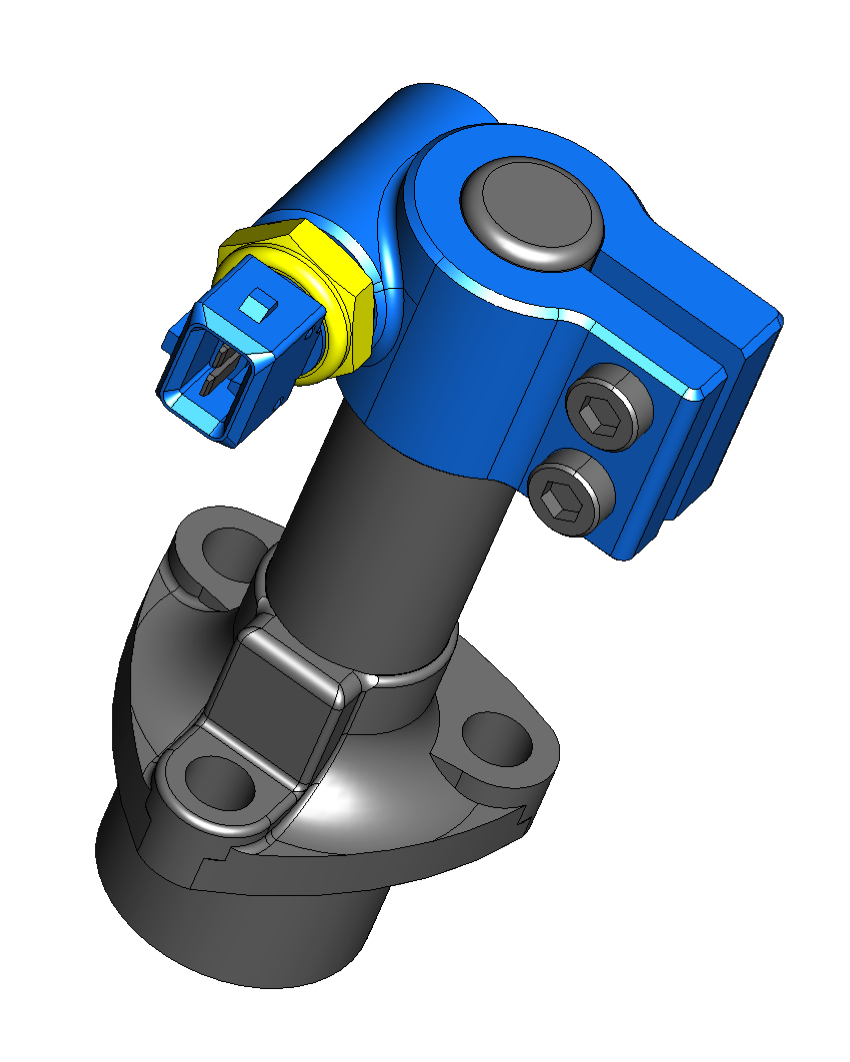

Final version for the CNC guy, unless it's too expensive.
