Thunderace crank plots
27/01/10 14:30 Filed in: Thunderace EFI

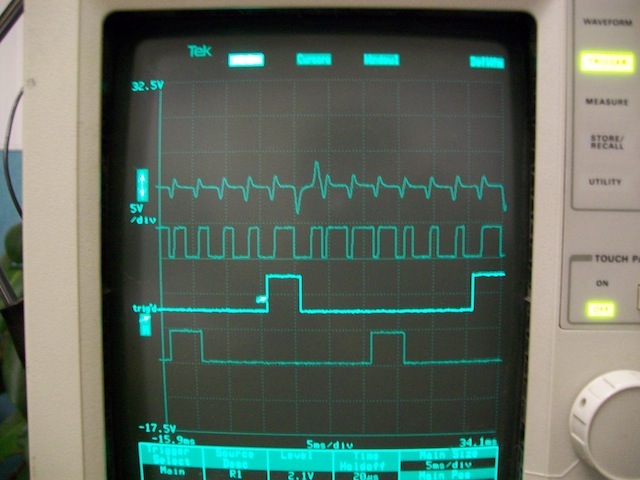

Thunderace YZF1000 raw crank VR trace on top, square wave VR1 conversion, coded trigger1 & trigger2, used for ignition and fuelling events.
Thunderace YZF1000 raw crank VR trace on top, square wave VR1 conversion, coded trigger1 & trigger2, used for ignition and fuelling events.
